Modular Clean Room pob Panel

About Modular Clean Room pob Panel

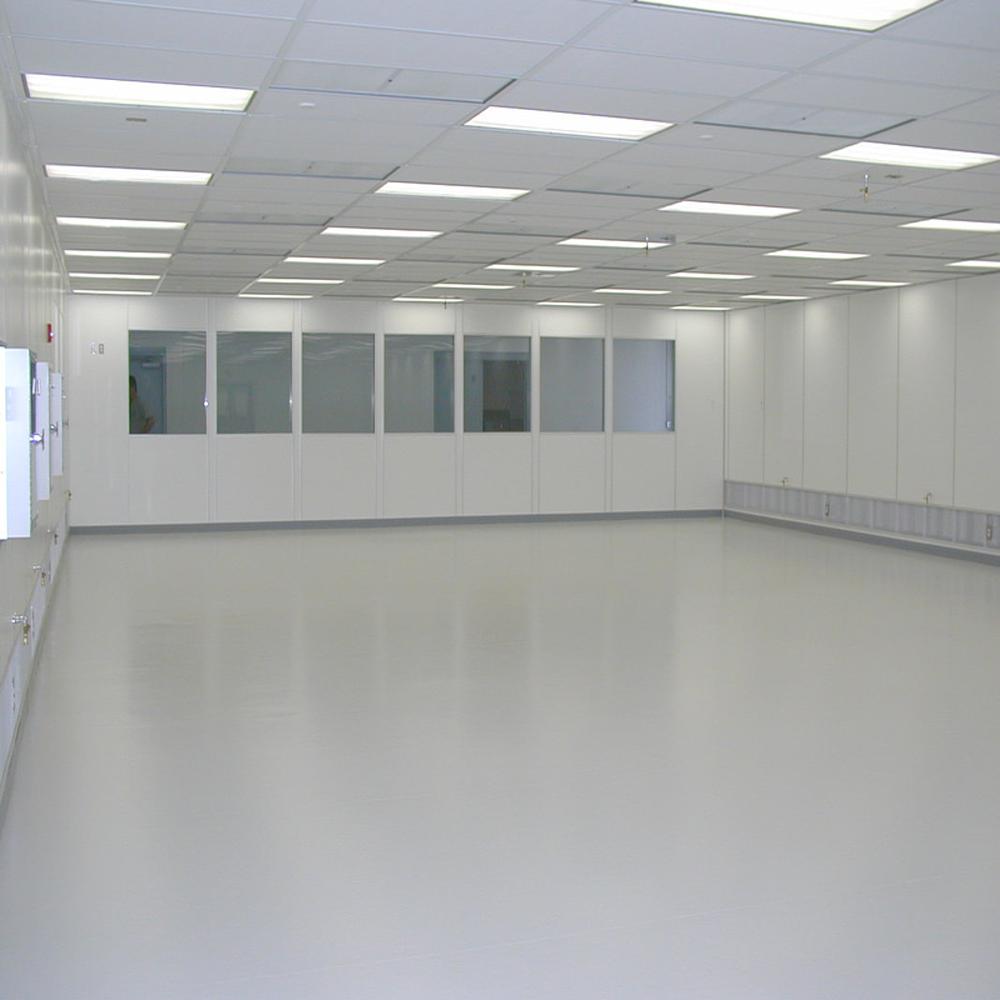

The ceiling of a pharmaceutical clean room is a critical component of the clean room envelope. It is designed to provide a sealed, smooth, non-shedding, and easily cleanable surface that prevents particle accumulation and supports controlled airflow. Ceilings in pharma clean rooms also integrate HEPA filters, lighting fixtures, sprinklers, and utility panels in a way that ensures compliance with GMP (Good Manufacturing Practices), ISO 14644, and EU GMP clean room standards.

Key Features of Clean Room Ceilings

1. Material of Construction

   • Modular Sandwich Panels (PUF, Rockwool, EPS, or aluminum honeycomb).

   • Powder-Coated GI (Galvanized Iron) or Stainless Steel (SS 304/316) in high-grade zones.

   • HPL (High Pressure Laminate) or PVC for non-critical areas.

   • Designed to be non-shedding, chemical-resistant, and airtight.

2. Seamless & Flush Finish

   • Ceiling panels are joined with aluminum coving or sealed joints.

   • Surfaces are smooth and free of cracks or gaps, preventing dust accumulation.

3. Integration of HEPA / ULPA Filters

   • Ceiling grids are designed to accommodate HEPA filter modules for air supply.

   • Ensures laminar airflow in Grade A/B areas.

4. Lighting System

   • Flush-mounted, sealed LED lights to avoid particle trapping.

   • Energy-efficient, low-heat lights suitable for sterile areas.

5. Air-Tightness & Pressure Control

   • Proper sealing around filter housings, light fixtures, and service penetrations.

   • Maintains differential air pressure between clean room zones.

6. Coving at Ceiling-Wall Junctions

   • Rounded corners with aluminum or SS covings for easy cleaning.

   • Eliminates sharp edges where microbes could grow.

7. Utility Integration

   • Provision for sprinklers, sensors, and alarm systems.

   • Access panels for maintenance of utilities above the ceiling (ducts, cables).

8. Fire & Thermal Resistance

   • Rockwool-based ceilings provide fire resistance.

   • PU/EPS panels provide insulation for temperature-controlled areas.

9. Load Bearing

   • Ceilings are non-load bearing (like walls).

   • Suspended ceilings can support lightweight fixtures (filters, lights), but heavy equipment is mounted on separate structural frames.
